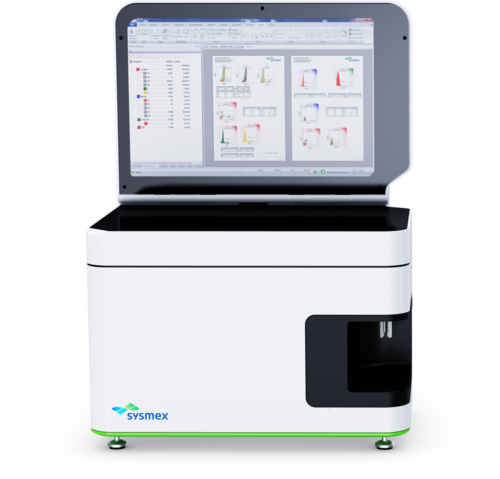

CyFlow Cube 8

High-performance flow cytometry

The CyFlow Cube 8 is a compact flow cytometer for the analysis of single cells and microscopic particles with a high grade of integration. The CyFlow Cube 8 offers the unique combination of a truly stand-alone system of a small footprint with a modular configuration concept with up to 6 colours. The easy-to-use CyFlow software provides control of the instrument, data acquisition, analysis and storage. The possibility of customised instrument settings facilitates switching between different applications. CyFlow Cube 8 offers True Volumetric Absolute Counting (TVAC), which allows the display of particle concentrations for any subsets of cells without the need for reference beads, even if defined by a gate at a later time after the acquisition.

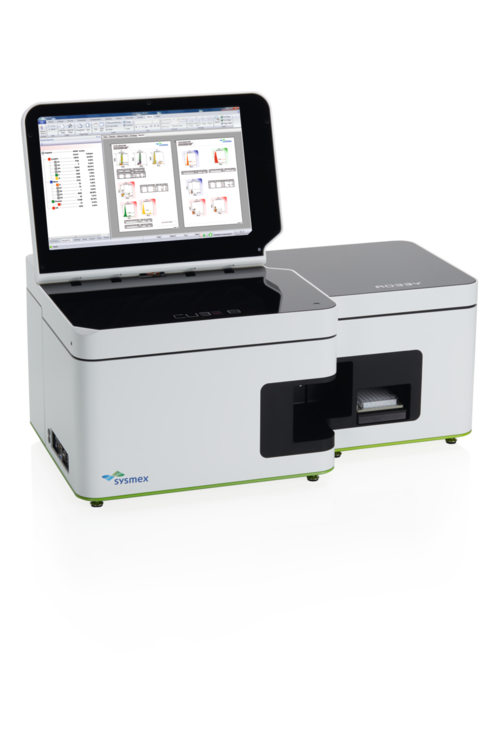

* Optional CyFlow Robby 8 Autoloading Station for well plates and tubes

* Optional CyFlow Sorter for closed, non-destructive cell and particle sorting with high purity

Technical Specifications
Light sources Up to four light sources (three lasers + high-power UV LED) Blue laser: 50mW at 488nm, adjustable to 200mW at 488nm
Red laser: 25mW at 638nm, 40mW at 640nm
Violet laser: 100mW at 405nm
UV laser: 60mW at 375nm
Green laser: 30mW at 532nm, 100mW at 532nm
Yellow laser: 100mW at 561nm
Orange laser: 50mW at 594nm
High-power UV LED: 365nm
Optics Modular optical system with selected PMTs with integrated electronic preamplifier for FSC, SSC, FL1-FL6
Exchangeable optical filters
Flow system Quartz flow cuvette for laminar sample transport and hydrodynamic focussing
True Volumetric Absolute Counting (TVAC) based on mechanical volume measurement
Computer-controlled precision syringe pump, speed continuously adjustable from 0-20 µL/s
Software Windows™-based FCM software CyFlow for real-time data acquisition, real-time data analysis and real-time data display
Easy set-up of experimental templates (configuration files)
Flow Cytometry Standard (FCS) data format for storage of original and evaluated data
Dimensions Stand-alone instrument: W 500mm x H 370mm x D 470mm
With Autoloading Station: W 840mm

CyFlow Cube 8 Sorter

General facts Configurations with up to five optical parameters (up to three colours). Sterile sorting by closed fluidic system. Optional CyFlow Robby 8 Autoloading Station for well plates and tubes
Light sources Up to two simultaneous light sources (lasers)> Blue laser: 50mW at 488nm, adjustable to 200mW at 488nm
Red laser: 25mW at 638nm, 40mW at 640nm
Violet laser: 100mW at 405nm
UV laser: 60mW at 375nm
Green laser: 30mW at 532nm, 100mW at 532nm
Yellow laser: 100mW at 561nm
Orange laser: 50mW at 594nm
Optics Modular optical system with selected PMTs with integrated electronic preamplifier for FSC, SSC, FL1-FL3
Exchangeable optical filters
Flow system Quartz flow cuvette for laminar sample transport and sorting process
Completely closed and integrated fluidic system
True Volumetric Absolute Counting (TVAC) based on mechanical volume measurement
Computer-controlled precision syringe pump, speed continuously adjustable from 0-20 µL/s
Software Windows™-based FCM software CyFlow for real-time data acquisition, real-time data analysis and real-time data display
Easy set-up of experimental templates (configuration files)
Flow Cytometry Standard (FCS) data format for storage of original and evaluated data
Dimensions  W 500mm x H 370mm x D 470mm (without sorting module)
Contact
You have a question and would like to get in touch with our experts? We look forward to receiving your enquiry.

Sysmex UK LTD

Sysmex House

Garamonde Drive

Wymbush

Milton Keynes

MK8 8DF

0333 320 3460

Explore more

CyFlow Cube 6

CyFlow Cube 6

CyFlow Cube 6

Details
CyFlow Ploidy Analyser

CyFlow Ploidy Analyser

Automatic Measurement of Ploidy Level and Genome Size

Details

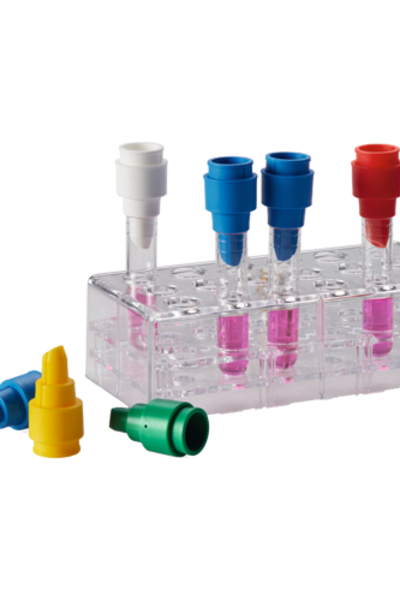

CellTrics
